Slab formwork

Specialists since 1991 in the design and supply of slab formwork for the construction of residential and non-residential building slabs. Our systems allow the shoring and formwork of all types of slabs through a complete system of decking formwork for maximum performance on-site.

System definition

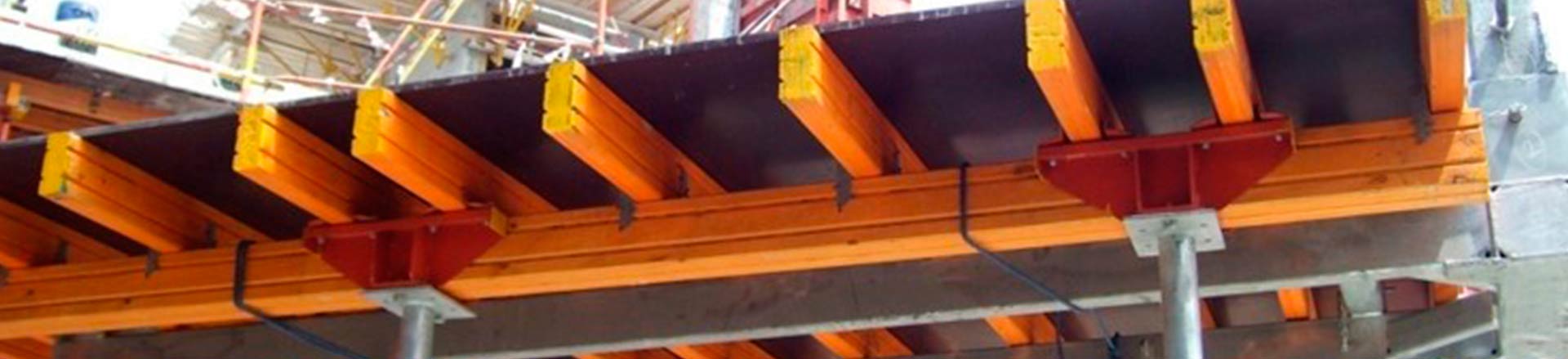

A Decking formwork system combine different types of shoring elements (props or Alshor Plus) with a modular formwork system composed of primary beams (Superslim, Albeam or double T200) and secondary beams (T-200 or Alform Beam), on which The formwork lining is fixed allowing the formwork and support for the reinforcement and pouring of concrete for the execution of the structural slabs.

The particularity of this system is that it allows high productivity as it is a complete slab formwork, assembled once at the beginning of the project and moved in the same floor with specific systems of transfer trolleys and between floors with special accessories for C hook-type cranes.

Simplicity and versatility

The simple and versatile design of INCYE decking allows initial assembly on-site, and thanks to the transport systems that are accessories to the system, it allows horizontall movement on the same floor and vertically between floors, so that the same deck remains without dismantling it until the end of the execution of the structures. The high versatility of the system allows it to accommodate any configuration of height and kind of slabs (flat, solid or lightened, with downstand beams, ...)

Safety

All systems used for the execution of Decking Formwork present in all their kind a wide range of accessories that allow safe work both in the assembly phases and in the finished structure. The no need for disassembly between phases and specific transport systems also reduces labor work, with the consequent reduction in occupational risks.

Cost effectiveness

Our product range is designed to provide high strength and maximum efficiency. This wide range of designs with INCYE equipment enables a specific solution for each type of slab, and thus lower assembly times and costs. Decks with a maximum surface area and the lack of assembly and disassembly until the end of the work represent a great saving in labor costs and a significant improvement in execution times.

Main systems

Alshor Plus

Lightweight, high-capacity, modular aluminum falsework system with up to 120 kN SLS per foot, with built-in safety and productivity features that maximize your efficiency.

Superslim

They are lightened beams with a working load capacity of 150kN SLS. It is the most versatile light meccano, used as a primary beam for the generation of formwork structures.

Props

Of different heights and load capacities according to the needs of the work, they constitute the simplest system for supporting Decking formwork, combined with special header beams attached to main formwork beam.

T200

Beam with upper and lower chord made of solid wood, with central plywood core joined to the chords by toothed joint. Used as a secondary formwork beam.

Projects carried out with Decking formwork
